The 12V Lithium ion Battery Charger is specifically designed for LiFePO4 batteries, Ternary Lithium Batteries and other batteries.
The battery chargers are mainly used in electric bicycles, electric motorcycles, high-power scooters, golf carts, gardening tools, energy storage, industrial and commercial robots, communications, consumer electronics, and other fields.
The battery charger has an LED charging indicator that displays the real-time charging status, such as in charging, fully charged, not connected well, and more. The lithium battery charger is compact and lightweight, making it portable and easy to use.
Specification
Model No.: AP-FN120CH
1.Wide Input Voltage range90-240VAc 47/63Hz, 2.5A Max;
2.Product Dimensions: 172.7x72.7x36mm;
3.Power Factor: 0.55
4.Support Ternary Lithum Battery, LiFePO4 Battery and Other Batteries.
5.OCP, OVP, Short Circuit PRotection, Reverse Polarity protection, Anti-revert Current Protection, Anti-spark Protection etc.
Technical Data:
| Model No. | AP-FN120CH |
| input voltage&Frequency | 100-240VAC, 47/63Hz, |
| Input current | 2.5A, Class II |
| Housing | Plastic |
| Power Factor | 0.55 |
| Output Voltage | 0.0-88VDC, |
| Output Current | 0.1-8.0A, |
| Output Power | max. 120W |
| Full Load Efficiency | >85% Input 230Vac@ Full load |
| LED Indicators | LED1: Red---Power on; LED2: Red---Charging, Green---fully charged |
| Operating temperature | -20 to 40℃ |
| Storage temperature | -40 to 70℃ |
| Waterproof Rating | IP65 |
| Product Dimensions (mm) | 172.7*72.7*36.6 |
| Net Weight | 600g |
| Cooling | Natural cooling |
| Protection function | OCP，OVP,Short Circuit Protection, Reverse Polarity Protection, Anti-revert current Protection, Anti-spark Protection etc |
| Safety Standard | EN 60335-2-29:2004 + A2:2010+A11:2018； EN 60335-1:2012 + AC:2014 + A11:2014 + A13:2017; UL 1012:2010 Ed.8； AS/NZS 4417.2:2018 |
| Certification | ETL, CE,PSE,RCM,SAA, CQC etc |
| Warranty | 2 years |
Typical Model
| Typical Model | LiFePo4 Battery | 14.6V 7A | 29.2V 4A | 43.8V 3A | 58.4V 2A |
| Ternary Lithum Battery | 12.6V 7A | 29.4V 4A | 42V 3A | 54.6V 2A | |
| Lead-acid battery | 12V 55A | 24V 4A | 36V 3A | 48V 2A |

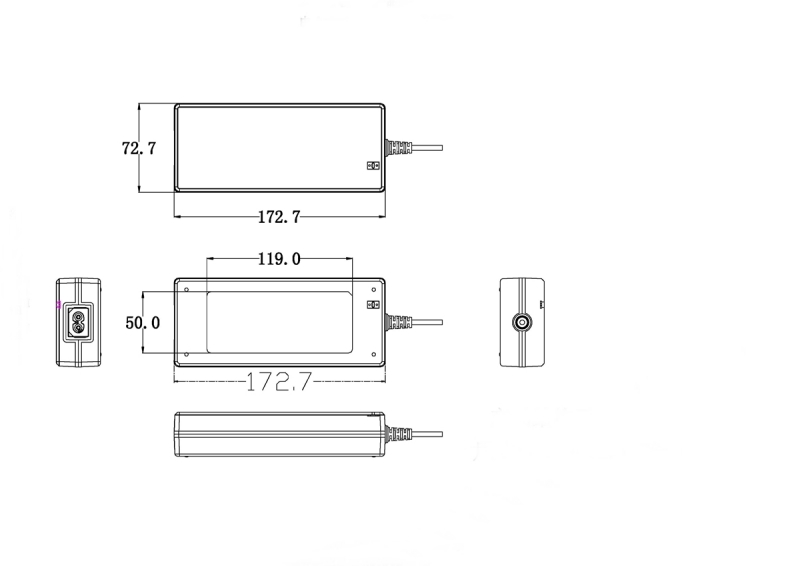

Appearance Dimension
