30W 12V 2.5A 24V 1.25A Interchangeable Plug Power Adapter

The ICP30 series 30W Interchangeable Prong Ac Dc Adapter come with cUL FCC CE GS PSE RCM global certifications and integrated safety features such as OCP, OVP, overload, and short-circuit protection.

The 30W Interchangeable Prong Power Adapter utilizes top-tier materials, strict manufacturing protocols, and superior electronic components for optimal stability, offering users a secure charging experience.

Ideal for small household appliances, IoT devices, electronic pianos, air purifiers, POS machine, LED lamp, and more.

Inquiry Now

Description

Specification

Model:ICP30A-xxx-yyyy

1.Wide input Voltage Range100-240VAc

2.OCP OVP and Shiort Circuit Protection

3.Dimension: 71.2x43x29mm

4.EN62368 EN61558 EN60335 Standard

5.cUL, FCC,CE,GS,PSE,KC,CCC etc Global Certificates

Specification Details:

Full Load Efficiency	DOE VI,ERP VI etc
Burn-in Test	80% to 100% load, 40 C°± 5℃ for 4 hours
Hi-Pot Test	Primary To Secondary: 3000VAC 10mA 1 minute or 4000VDC 10mA 3 Sec.
Operating temperature	0 to 40℃
Storage temperature	-20 to 60℃
RoHS & Reach	Yes
Length of DC cord	Optional (1.2m 1.5m 1.83m etc)
DC plug	Optional (5.5x2.5mm 5.5x2.5mm 3.5x1.35mm etc)
Product Dimensions (mm)	71.24329
Ripple & Noise	120Vp-p Max
Package	White box or Plastic Bag with outer carton
No load Power Consumption	< 0.075W
Protection function	Short-circuit/OVP/OCP etc
Safety Certificate	EN62368:UL/CB/CE/GS/EMC/LVD/RCM/KC/FCC/PSE/CCC
	EN61558:CE/GS/CB/FCC/LVD/RCM UL 1310
Warranty	3 years

Typical Model

I/P Voltage	Typical Model	Output Voltage	Output Current	Ripple& Nosie	Effiviency Level
100-240V/ 50-60Hz	ICP30A-090-3000	9V	3000mA	100mV	VI
	ICP30A-120-2000	12V	2000mA	100mV	VI
	ICP30A-120-2500	12V	2500mA	100mV	VI
	ICP30A-240-1000	24V	1000mA	100mV	VI
	ICP30A-240-1250	24V	1250mA	100mV	VI

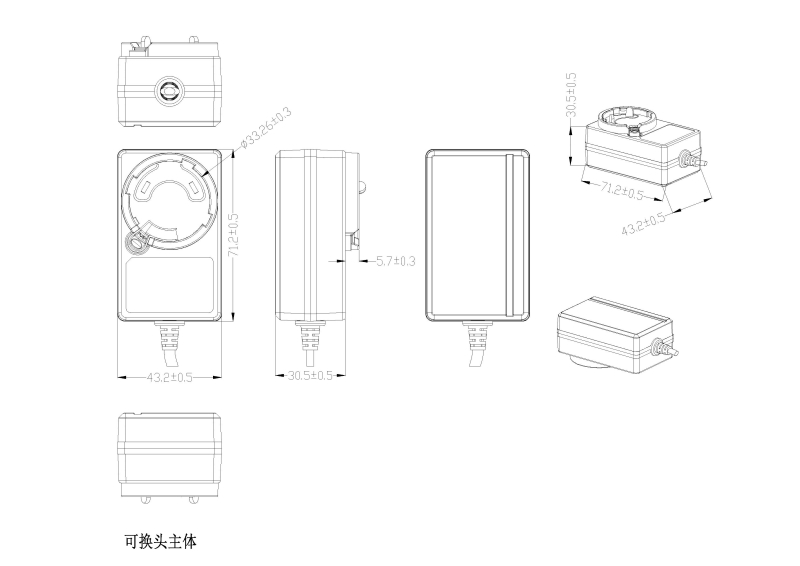

Appearance Dimension

30W 12V 2.5A 24V 1.25A Interchangeable Plug Power Adapter

30W 12V 2.5A 24V 1.25A Interchangeable Plug Power Adapter
