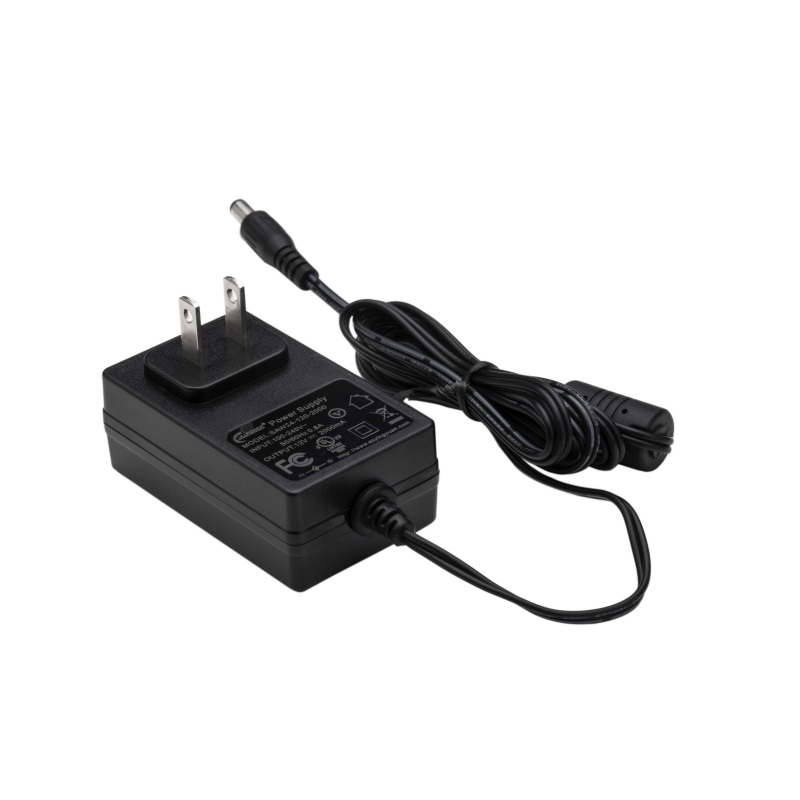

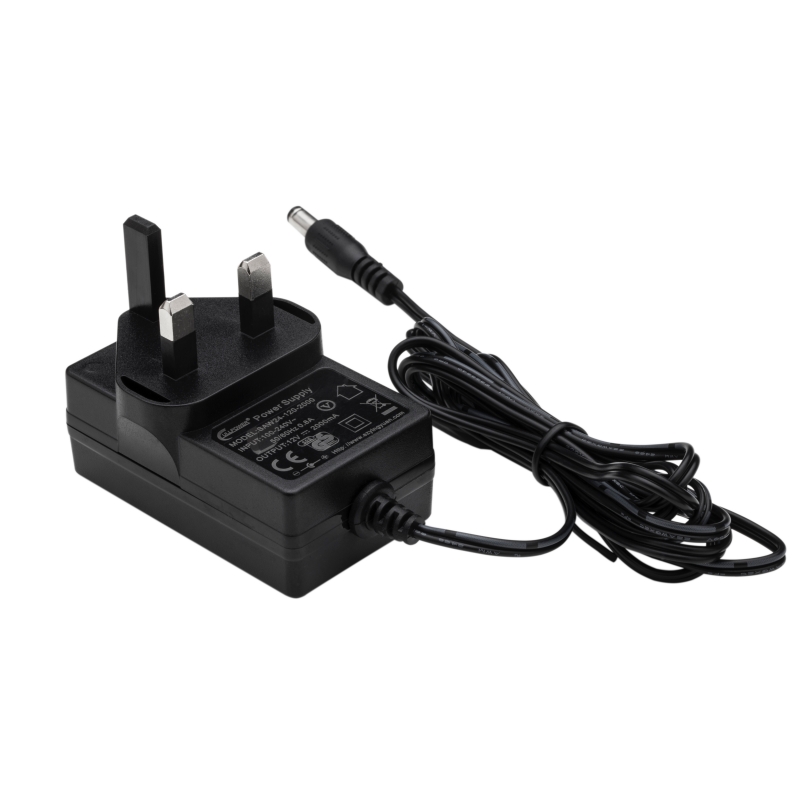

30W Series 12V 2A 2.5A 24V 1A 1.25A Wall Mounted Power Adapter with cUL CE RCM KC PSE ect Global Certificates

The SAW30A series of AC DC wall mount power supplies provides up to 30 watts of output power. certified by global certificates. Share With the OCP, OVP and overload protection, short-circuit protection.The 12V 2.5A adapter adopt the industry's qualified materials, strict production processes, and premium-quality electron components to ensure the stability. Gives the users a safe charging experience. Widely used to small household devices, Internet of Thing devices ,Electronic piano, air purifier, water purifier, breast pump and so on.

Inquiry Now

Description

Specification

Model: SAW30A-xxx-yyyyf;

• Wide Input Voltage Range 90~264VAC

• High Efficiency• Level VI energy Compliant

• OCP OVP and Short Circuit Protection

• RoHS Reach Compliant

• Drop In Tested, Burn-In Tested

• Black or White Case Available

• Dimension: 71.2x43x29mm

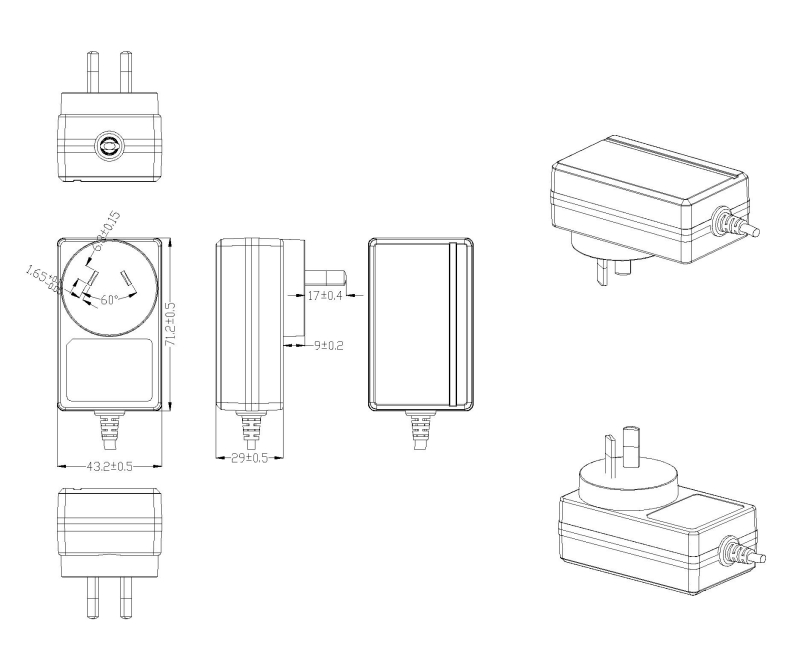

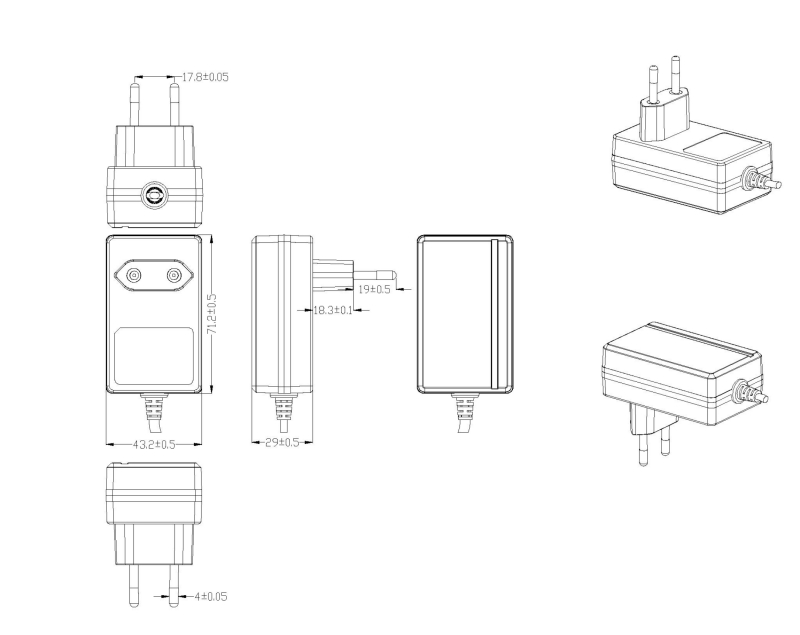

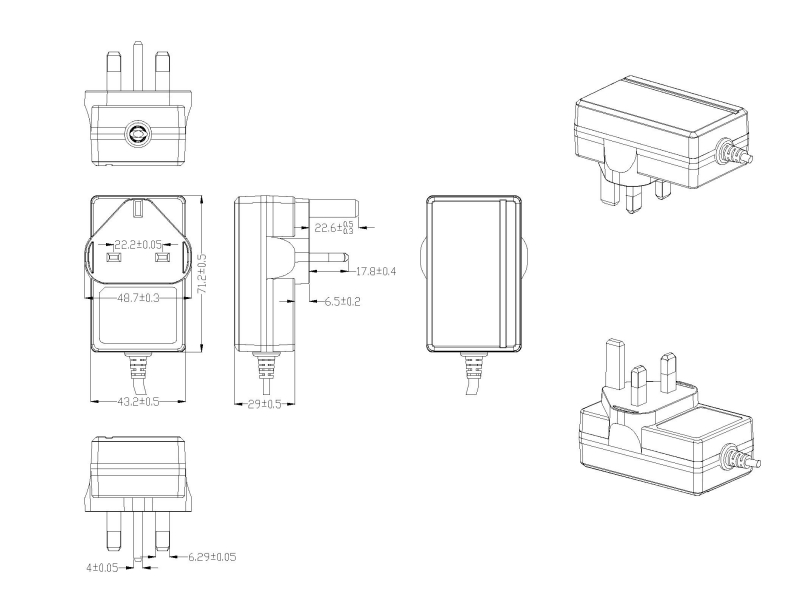

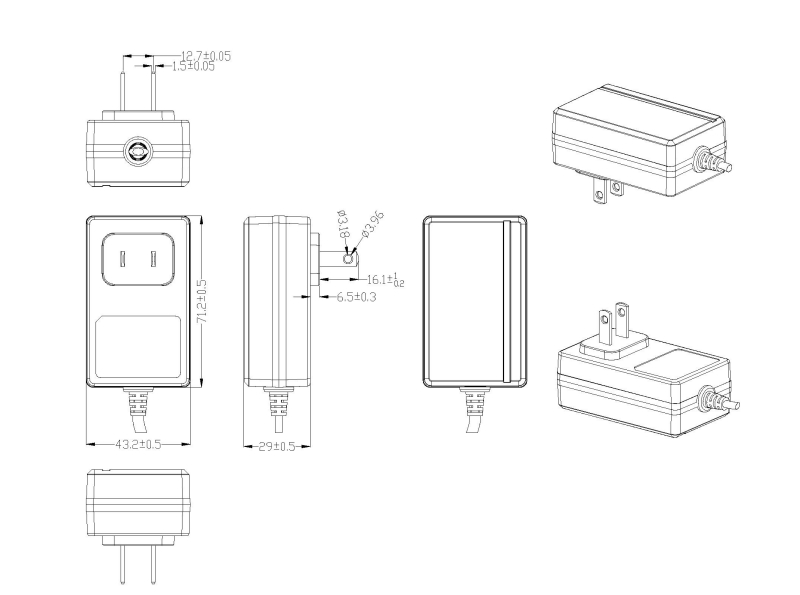

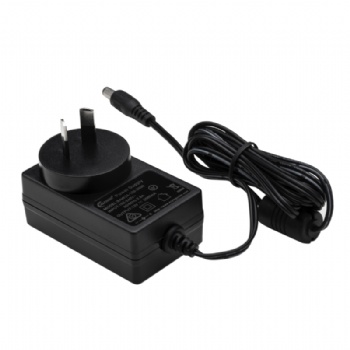

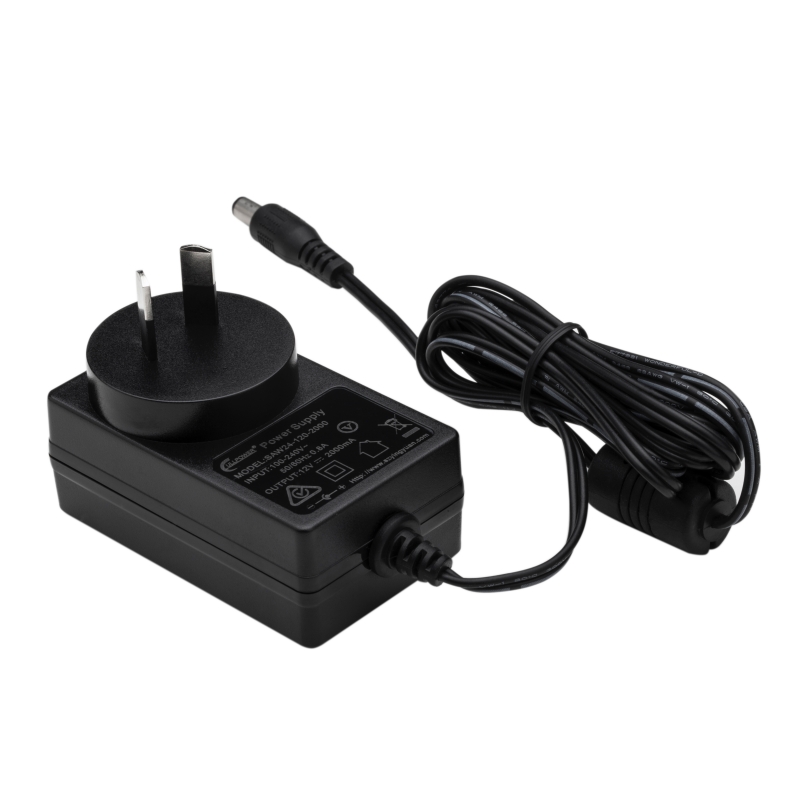

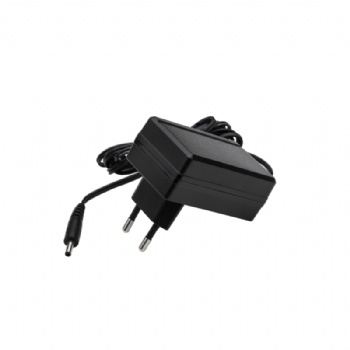

• Optional Plug Types Available: US Plug, UK Plug, EU Plug, and AUS Plug

• cUL, FCC, CE, GS PSE, KC, CCC etc global certificates

Specification Details

Power Supply Model	SAW30A-xxx-yyyyZ
Class II Protection	Yes
input voltage&Frequency	100-240VAC, 50/60Hz, 0.8A
Output Power	max. 30W
Full Load Efficiency	DOE VI,ERP VI etc
Burn-in Test	80% to 100% load, 40 C°± 5℃ for 4 hours
Hi-Pot Test	Primary To Secondary: 3000VAC 10mA 1 minute or 4000VDC 10mA 3 Sec.
Operating temperature	0 to 40℃
Storage temperature	-20 to 60℃
RoHS & Reach	Yes
Length of DC cord	Optional (1.2m 1.5m 1.83m etc)
DC plug	Optional (5.5x2.5mm 5.5x2.5mm 3.5x1.35mm etc)
Product Dimensions (mm)	71.24329
Ripple & Noise	120Vp-p Max
Package	White box or Plastic Bag with outer carton
No load Power Consumption	< 0.075W
Protection function	Short-circuit/OVP/OCP etc
Safety Certificate	EN62368:UL/CB/CE/GS/EMC/LVD/RCM/KC/FCC/PSE/CCC
	EN61558:CE/GS/CB/FCC/LVD/RCM UL 1310
Warranty	3 years

Typical Model

I/P Voltage	Typical Model	Output Voltage	Output Current	Ripple& Nosie	Effiviency Level
100-240V/ 50-60Hz	SAW30A-090-3000	9V	3000mA	100mV	VI
	SAW30A-120-2000	12V	2000mA	100mV	VI
	SAW30A-120-2500	12V	2500mA	100mV	VI
	SAW30A-240-1000	24V	1000mA	100mV	VI
	SAW30A-240-1250	24V	1250mA	100mV	VI
